How Thick Can a Laser Welder Weld?

Laser welding machines are revolutionizing how we approach welding tasks, providing precision, speed, and high-quality results. However, one of the most common questions is about the thickness limitations of laser welders. In this article, we will explore the maximum thickness a laser welder can handle, as well as the factors that influence its capabilities.

The maximum thickness that a laser welder can weld depends on several factors, including the laser's power and the material being welded. Understanding these variables can help you choose the right machine for your specific needs and achieve the best results.

Let's dive deeper into the specifics of laser welding and explore how different power levels affect the welding of various materials.

What is the maximum thickness for laser welding?

The maximum thickness a laser welding machine can handle depends largely on its power and the material. While some machines are ideal for thin materials, others can weld thicker materials with ease. But how do you determine the maximum thickness for your specific application?

Laser welders can weld materials up to a certain thickness based on their power. For instance, a 1kW laser is suitable for welding 3mm stainless steel, while higher-powered lasers, like the 3kW machine, can weld materials up to 8mm thick.

The maximum thickness for laser welding¹ is directly related to the power of the laser machine. Kirin Laser² offers several models with varying power outputs, each capable of welding materials of different thicknesses. Here's a breakdown of what each power level can handle:

Laser Power	Stainless Steel	Carbon Steel	Aluminum
1 kW	3mm	3mm	3mm
1.5 kW	5mm	4mm	4mm
2 kW	6mm	5mm	5mm
3 kW	8mm	8mm	6mm

1. 1 kW Laser Welder

This entry-level machine is great for thin materials, ideal for welding 3mm stainless steel, 3mm carbon steel, and 3mm aluminum. It's perfect for industries requiring precision welding of smaller parts and thin materials.

2. 1.5 kW Laser Welder

With a 1.5kW power output, this machine can weld up to 5mm stainless steel, 4mm carbon steel, and 4mm aluminum. This power level is often chosen by industries looking for a balance between cost and capability, handling medium-thickness materials.

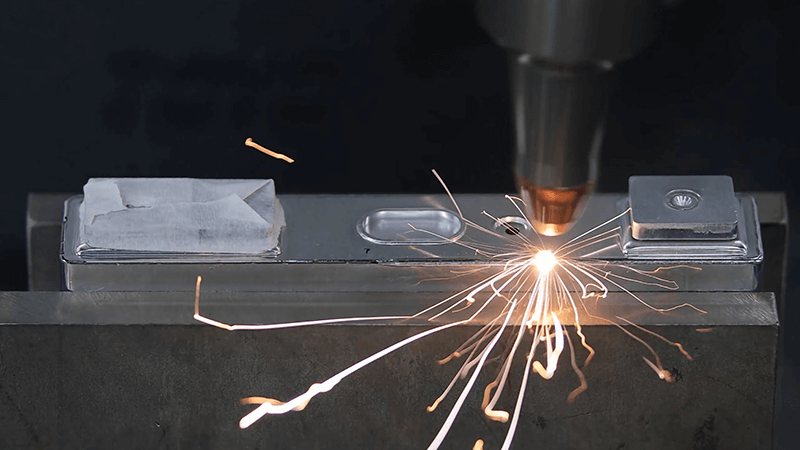

3. 2 kW Laser Welder

A 2kW laser welder takes things a step further, capable of welding 6mm stainless steel, 5mm carbon steel, and 5mm aluminum. It provides greater depth penetration and higher speeds, making it ideal for more demanding applications.

4. 3 kW Laser Welder

For heavy-duty welding, a 3kW laser welder can weld 8mm stainless steel, 8mm carbon steel, and 6mm aluminum. This high-power machine is suited for industries that need to work with thicker materials, such as automotive or construction.

One example from the automotive industry highlights the difference a 2kW laser can make. A client struggled with welding 6mm stainless steel parts for vehicle frames, but after switching to a 2000W fiber laser, they achieved clean, deep welds. The high precision of the laser reduced distortion and eliminated the need for post-weld grinding, which saved both time and money.

What are the limitations of laser welding?

While laser welding machines offer precision and versatility, they do come with certain limitations. Understanding these limitations will help you maximize the benefits of your laser welder and ensure it’s used for the right applications.

Laser welding is not perfect for every scenario. It can struggle with materials that are highly reflective, such as copper, or very thick materials that exceed the machine's power capabilities.

There are several key limitations to consider when using a laser welder:

1. Material Reflectivity³

Materials with high reflectivity, such as copper and gold, are difficult to weld with lasers. The high reflectivity means that much of the laser energy is reflected off the material's surface instead of being absorbed, which reduces the effectiveness of the weld. Special laser coatings or alternative methods such as hybrid welding (using both laser and arc) are sometimes employed to handle highly reflective materials, but these can increase complexity and cost.

Material	Reflectivity	Impact on Laser Welding
Copper	High	Reduced weld efficiency
Gold	High	Increased difficulty in achieving deep penetration
Aluminum	Medium	Requires higher power for successful welding

2. Material Thickness⁴

While laser welding is great for many materials, it has limitations when it comes to thicker materials. As the material thickness increases, the laser’s penetration ability decreases. For example, welding thicker sections of steel requires higher-powered lasers to achieve the same depth of weld. In cases where the material exceeds the laser’s capability, multiple passes or higher-powered machines may be required to ensure a strong, uniform weld.

Material Type	Max Thickness (1 kW)	Max Thickness (2 kW)	Max Thickness (3 kW)
Stainless Steel	3mm	6mm	8mm
Carbon Steel	3mm	5mm	8mm
Aluminum	3mm	5mm	6mm

3. Machine Size and Accessibility

The size of the laser machine can also limit its capabilities, particularly for welding larger or more complex parts. Laser welding is often used for precision work on smaller parts, and while there are machines designed for larger tasks, these can be more expensive and may have less flexibility in terms of movement and positioning. Additionally, larger machines may require more space and specialized infrastructure, which can add to the cost.

4. High Initial Investment⁵

Laser welding machines are typically more expensive than traditional welding machines. While the long-term benefits such as faster welding speeds, less material wastage, and reduced labor costs often justify the expense, the upfront cost can be a barrier for some businesses, especially smaller operations. Companies must weigh the initial cost against the long-term savings in production time and material wastage.

Do laser welders make strong welds?

One of the key benefits of laser welding is the strength of the welds it produces. Laser welding offers precise control over heat input, which helps minimize thermal distortion and produces strong, durable joints.

Yes, laser welders make strong welds, especially when using the right power settings and parameters for the material being welded. The precision and control of laser welding lead to high-quality, strong welds.

Laser welders are known for their ability to produce high-strength welds⁶. Here's why:

1. Precision and Control

Laser welding provides very precise control over the heat input, which results in minimal thermal distortion. This precise control helps to create strong, clean welds with less risk of defects like warping or cracking, which are more common in traditional welding methods. The high heat intensity of the laser allows for deep penetration without affecting the surrounding material too much. This makes laser welds particularly effective for high-strength applications where precision is paramount.

Welding Process	Heat Input Control	Weld Strength	Distortion Reduction
Laser Welding	High	High	Excellent
TIG Welding	Moderate	Moderate	Good
MIG Welding	Low	Low	Poor

2. Stronger Joints

Laser welding can produce stronger joints⁷ because it creates a deeper penetration weld, which is ideal for high-strength applications. The focused energy of the laser can melt the base material and filler material precisely, allowing for a stronger bond that is often superior to what is achieved through traditional welding methods. The result is a stronger, more reliable joint that is able to withstand more stress and pressure.

3. Reduced Heat-Affected Zone (HAZ)

The heat-affected zone (HAZ)⁸ is the area around the weld that experiences changes in microstructure due to heat exposure. A smaller HAZ means that the material around the weld remains largely unaffected, maintaining its strength. Laser welding's ability to focus heat on a very small area results in a reduced HAZ, ensuring that the surrounding material retains its original properties. This is particularly important when welding high-strength materials that need to maintain their mechanical properties.

What is the greatest hazard to a welder while laser welding?

Laser welding offers many benefits, but it also comes with specific hazards. Understanding these hazards is crucial to ensuring safety in the workplace. The greatest risk to a welder while laser welding is exposure to the laser beam itself.

The greatest hazard in laser welding is the intense laser beam, which can cause serious eye damage or burns if proper safety measures are not followed. Protective equipment and safety protocols are essential.

Safety is paramount when operating a laser welding machine, and the greatest hazard is undoubtedly the laser beam. Here are the primary safety concerns:

1. Eye Injury

Laser light is extremely bright and can cause severe eye damage, even from brief exposure. That's why it’s critical for welders to wear proper laser safety glasses⁹. These glasses are designed to filter out harmful wavelengths and protect the eyes from potential damage.

Laser Type	Potential Eye Damage	Required Protection
Fiber Laser	Severe	Laser Safety Glasses
CO2 Laser	Severe	Laser Safety Glasses
Diode Laser	Moderate	Safety Glasses

2. Skin Burns

The laser beam can also cause skin burns if it comes into direct contact with the welder. Protective clothing and gloves are essential to protect the skin from the intense heat produced by the laser. Specialized laser safety gear is designed to block or redirect the harmful energy emitted by the laser beam.

3. Fume and Gas Exposure

Laser welding can produce fumes and gases that are harmful if inhaled. Proper ventilation and fume extraction systems¹⁰ are crucial in preventing respiratory issues and maintaining a safe work environment. Using the right materials and ensuring good airflow can mitigate this risk.

4. Fire Hazard

Because laser welding involves high temperatures, there’s always a risk of fire, especially if the material being welded is flammable. Adequate fire safety measures should be in place to mitigate this risk.

By following proper safety protocols, the risks associated with laser welding can be minimized, ensuring a safe and productive working environment.

Conclusion

Laser welding¹¹ is a highly effective method for welding a wide range of materials, but understanding its limitations and hazards is key to making the most of this technology. From material thickness to safety concerns, knowing how to optimize the use of a laser welder can significantly improve both the efficiency and quality of your welding projects.
