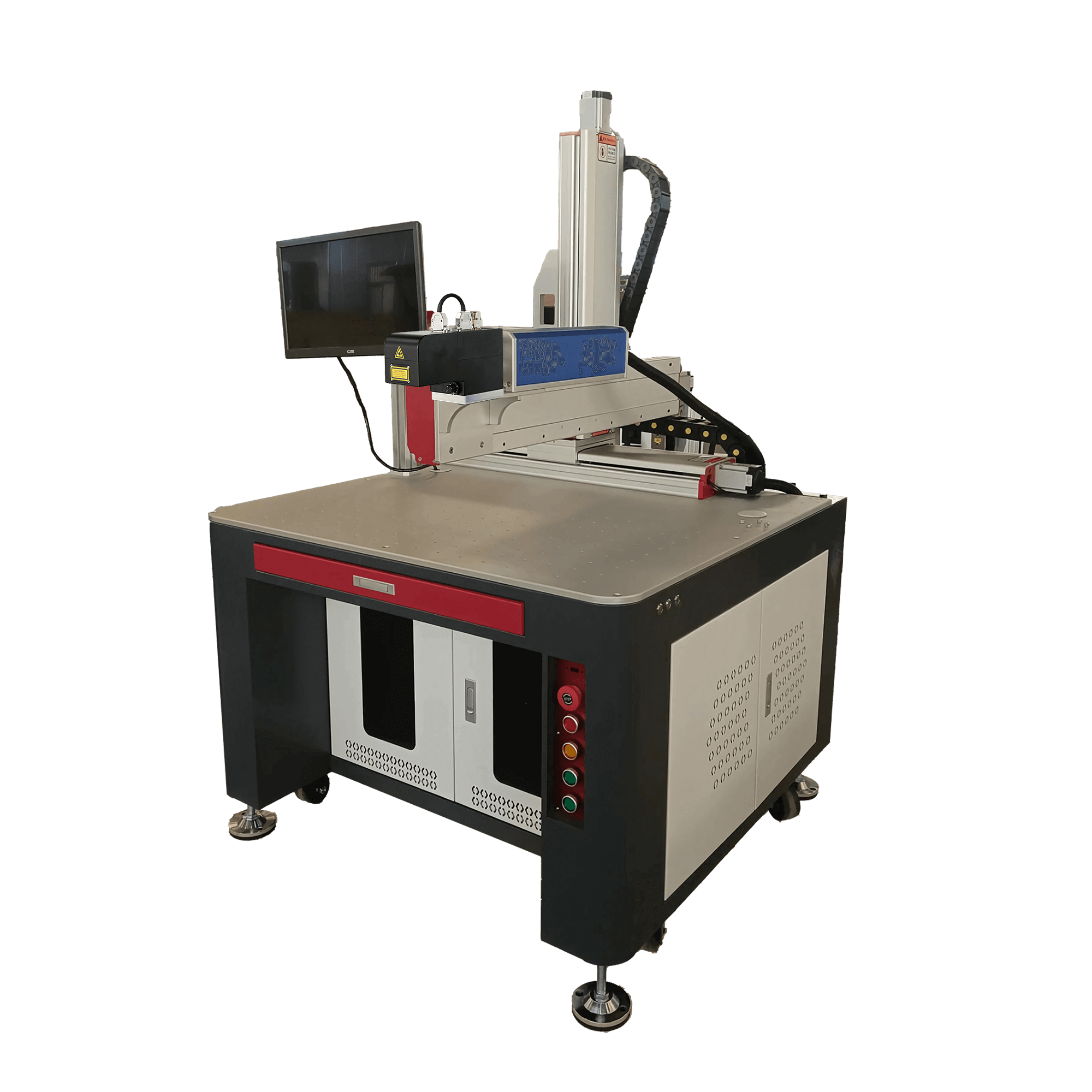

Kirin Laser’s 100-watt large-format 3D fiber laser marking machine is equipped with a premium Sino-galvo 2206-3D galvanometer. This machine offers a remarkable marking range of up to 600×600mm, making it ideal for high-precision tasks.
It delivers outstanding performance in various surface treatment applications, including 3D large curved surface marking, 3D embossed designs, intricate texture processing, and efficient paint stripping. Built for versatility, this machine meets the demands of industries requiring precise and durable markings.
Kirin Laser’s Dynamic Focus 3D Fiber Laser Marking Machines
Kirin Laser’s dynamic focus 3D fiber laser marking machines offer expansive working areas of up to 600 mm by 600 mm, effectively overcoming the size constraints of traditional marking systems. With an XY axis range of 1050 mm by 800 mm, these machines effortlessly manage large and intricate objects.
Outfitted with a high-quality Sino-galvo 2206-3D model galvo head, Kirin Laser’s 3D fiber laser marking machines are designed with a 3D dynamic focusing system and adaptable Z-axis processing capabilities, reaching depths of up to 200 mm. The adjustable working width can be easily controlled with a simple knob, providing flexibility for a variety of applications. The 3D dynamic focusing feature ensures precise, distortion-free engraving on surfaces with tapers, slopes, and complex geometries, making it particularly ideal for deep etching on curved surfaces.
Our 3D fiber laser marking machines are virtually maintenance-free. Just a routine cleaning of the field lens and the machine’s exterior after use is sufficient. With an energy consumption of approximately 0.35 kW per hour, these machines are both cost-effective and environmentally friendly.
Kirin Laser’s 3D fiber laser marking machines excel in extensive surface marking, 3D surface relief, texturing, welding, paint stripping, and other surface processing applications.
Count on Kirin Laser to elevate your operations with high-performance laser marking technology. Reach out for more information and discover why Kirin Laser is a trusted name in laser marking machinery!
MODEL | KR-AF20 | KR-AF30 |
OPTICAL PARAMETERS | ||
Power | 20W | 30W |
Galvo Head | ZBTK/Sino-galvo | ZBTK/Sino-galvo |
Marking Area | 110mm*110mm | 110mm*110mm |
Marking Linewidth | 0.025mm | 0.025mm |
Minimum Character Size | 0.15mm | 0.15mm |
Power Adjustment Range(%) | 0-100% | 0-100% |
Marking Speed | 0-1500mm/s | 0-1500mm/s |
Fiber Cable Length | 3m | 3m |
Laser Wavelength | 1064nm | 1064nm |
System Software | EZCAD2 | EZCAD2 |
Cooling Method | Air-cooled | Air-cooled |
MACHINE PARAMETERS | ||
Machine Dimensions | 340mm*430mm*580mm | 350mm*600mm*850mm |
Laser Source | MAX/Raycus/JPT | MAX/Raycus/JPT |
Machine Weight | About 15.5Kg | About 30Kg |
Supply voltage | 110V/220V、50/60Hz | 110V/220V、50/60Hz |
Overall Power Consumption | 460W | 580W |

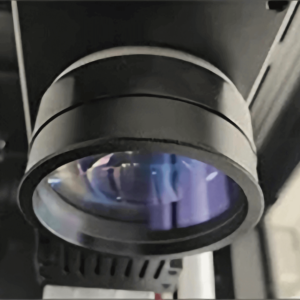

Kirin Laser’s 3D fiber laser marking machines utilize the advanced Sino-galvo 2206-3D dynamic focus system control, offering a Z-axis depth capability of up to 200mm. This system ensures a fine laser spot and high engraving accuracy, providing exceptional performance for large surface markings. It is particularly well-suited for 3D curved surface marking and deep engraving on complex, curved surfaces, delivering precise and consistent results across various applications.
Kirin Laser’s latest 3D fiber laser marking machines feature a robust aluminum table with a spacious working area of up to 600 mm x 600 mm. The laser marker’s XY axis format extends to 1050 mm x 800 mm, ensuring flexibility with an unrestricted marking range. These features make our 3D laser marking machines perfect for handling large and intricate objects. The aluminum workbench offers excellent stability, effective heat dissipation, and long-lasting durability, providing a reliable solution for diverse marking applications.
Kirin Laser’s 3D fiber laser marking machines are designed with user convenience in mind. Our 3D fiber laser marking machines feature a column system to easily locate the focal point. Simply press a switch, and the column will automatically adjust its height, streamlining the operation and saving both time and effort. Similarly, the galvanometer power supply and the laser power supply can be activated with a simple switch, enhancing efficiency and ease of use.
Large-Format Marking Capability: Large-format 3D fiber laser marking machines are typically equipped with high-power fiber lasers and 3D dynamic focusing systems, capable of marking in a working area of up to 1200 mm x 1200 mm. This technology surpasses the limitations of traditional flat marking, allowing for precise engraving and marking on large surfaces, curved surfaces, and even irregularly shaped objects.
Dynamic Focusing System: The 3D laser marking machine uses an advanced dynamic focusing system, enabling focus adjustment up to 300mm in the Z-axis direction. This feature ensures consistent marking depth and quality on uneven surfaces, making it ideal for deep engraving and the creation of complex patterns.
Diverse Applications: These large-format 3D laser marking machines are widely used in various industries, such as automotive parts, aerospace components, mold manufacturing, metal processing, and electronics. They can handle both metal and non-metal materials, including stainless steel, aluminum alloys, plastics, ceramics, and glass.
High Efficiency and Energy Saving: Large-format 3D fiber laser marking machines consume relatively low power, typically ranging from 0.5 kW to 2 kW, making them cost-effective to operate. Moreover, the lifespan of fiber lasers can reach up to 100,000 hours with minimal maintenance, significantly reducing long-term maintenance costs.
Advanced Automation and Intelligent Control: Some of the latest models of 3D fiber laser marking machines are equipped with intelligent control systems and human-machine interfaces (HMI), allowing users to easily set parameters and monitor the processing. Additionally, these machines can be integrated with automated loading and unloading systems, further enhancing production efficiency.
Robust Aluminum Table with Large Working Area: Our 3D fiber laser machines come with a durable aluminum worktable, providing a spacious working area of up to 600 mm x 600 mm. This substantial size allows for processing larger workpieces, making it ideal for industries requiring extensive surface marking and engraving.
Advanced 3D Dynamic Focusing Technology: Equipped with a cutting-edge 3D dynamic focusing system, our machines offer excellent depth control and flexibility, capable of achieving precise markings on curved, tapered, and irregular surfaces. This makes it particularly suitable for deep engraving, such as in mold making and automotive parts processing.
Versatile Application Capabilities: The large-format 3D fiber laser engraving machines can handle a wide range of materials, including metals like stainless steel, aluminum, brass, and non-metals such as plastics, ceramics, and more. This versatility is beneficial for industries like aerospace, electronics, automotive, and jewelry, where different types of materials and surface textures are involved.
Energy Efficiency and Low Maintenance: Our machines are known for their energy-efficient design, consuming significantly less power (approximately 0.5 kW to 2 kW per hour) compared to traditional marking methods. Additionally, the fiber laser source has an extended lifespan of up to 100,000 hours with minimal maintenance, reducing downtime and overall operating costs.
User-Friendly Operation and Control System: The user interface is designed for ease of use, featuring an intuitive control panel that simplifies setup and operation. The system allows for quick adjustments and real-time monitoring, ensuring consistent, high-quality results with every use. Integration with automated systems is also possible for enhanced productivity.
High Precision and Speed: Large-format 3D fiber laser engraving machines are built to deliver high-speed engraving without compromising on precision. This is achieved through advanced galvo heads and laser sources that ensure sharp, clean, and detailed engravings, even on the most intricate designs.
Large format 3D fiber laser engraving machines can engrave a wide range of materials, including metals such as stainless steel, aluminum, brass, and titanium, as well as non-metals like plastics, ceramics, glass, and some types of stone.
The working area for these machines varies by model but can range up to 1200 mm x 1200 mm, allowing for the processing of large objects and surfaces.
The 3D dynamic focus system adjusts the laser beam's focal length in real-time, enabling it to maintain high precision on curved or uneven surfaces. This feature is essential for engraving on objects with varying heights and complex geometries.
These machines are highly beneficial in industries such as automotive, aerospace, electronics, medical devices, jewelry, and manufacturing, where precision engraving on large and complex parts is required.
The core components of Kirin Laser's mini fiber laser marker come with a warranty period of 1 year. This warranty covers key parts, providing peace of mind and assurance of quality. Should any issues arise, the warranty ensures timely support and resolution to keep your operations running smoothly.
Fiber laser engraving machines typically do not require consumables like ink or cartridges. However, occasional cleaning and maintenance of the laser lens and machine parts are necessary to ensure optimal performance.
The engraving depth depends on the material and laser power used but generally can achieve depths up to several millimeters on metals. Some advanced machines can engrave even deeper by performing multiple passes.
These machines usually come with efficient air or water cooling systems that help maintain optimal temperatures during operation, ensuring the longevity and stability of the laser source and other components.
Maintenance for large format 3D fiber laser engraving machines is minimal and usually involves cleaning the optical components, checking the alignment, and ensuring that the cooling systems are functioning properly. Fiber lasers themselves are known for their long life and require little upkeep.
Yes, large format 3D fiber laser engraving machines can be integrated with automated loading and unloading systems, robotic arms, and conveyor systems to enhance productivity in large-scale manufacturing environments. environments.
