MODEL | KR-CW1000 | KR-CW1500 | KR-CW2000 | KR-CW3000 |
Laser source | Raycus / MAX / BWT/Reci | Raycus / MAX / BWT/Reci | Raycus / MAX / BWT/Reci | Raycus / MAX / BWT/Reci |
Laser Power | 1000W | 1500W | 2000W | 3000W |
Fiber cable Length | 10M | |||
Clean Speed | ≤40 m²/h | |||
Cooling Method | Water cooling | |||
Warranty Period | 1 year | |||
Voltage | 220V/2P | 380V/3P | ||
Working Environment Temperature | 5-40℃ | |||
Power Adjustment Rang | 0-1000W | 0-1500W | 0-2000W | 0-3000W |
Dimensions | 1000*550*950mm | |||
Weight | About 160KG | |||
PARAMETERS OF LASER CLEANING GUN | ||||
Optical Interface | QBH | |||
Laser Wavelength | 1070nm±20nm | |||
Power | ≤3000W | |||
Collimating Focal Length | 50mm | |||
Focusing Focal Length | 800mm | |||
Scanning Width | Length 300mm * Width 300mm | |||
Scanning Speed | 10-7000mm/s | 10-7000mm/s | 10-7000mm/s | 10-7000mm/s |
Auxiliary Air Pressure | 20.5-0.8Mpa | |||
Same Optical Aperture | Ø22 | |||
Weight | 0.96KG | |||
The clear circuit line panel in these machines adheres to IEC 61439-1&2 standards, ensuring the safety and reliability of low-voltage switchgear and control-gear assemblies. This compliance guarantees that the electrical equipment meets stringent safety requirements, providing reliable performance and safeguarding operators and equipment .
The machinery directive, particularly EN ISO 11553, specifies safety requirements for laser processing machines. This includes necessary protection measures and labeling to mitigate hazards. Compliance with these standards ensures the prevention of accidental radiation exposure, protecting users’ health .
These machines also comply with the Low Voltage Directive (LVD), ensuring safe operation within specified voltage limits. Adhering to EN 60825 standards further emphasizes safety, covering various laser products to ensure they are safe for use .
Continuous-wave laser cleaning machines use water cooling systems to ensure stability and efficiency, effectively dissipating heat and preventing overheating. This enhances the machine’s lifespan and maintains consistent laser output.
Water-cooled laser cleaning machines are ideal for industrial applications like cleaning large steel structures and machinery. They ensure stable operation under heavy loads, providing precise and efficient cleaning while reducing equipment failure rates.
Additionally, water cooling systems are environmentally friendly, recycling cooling water and eliminating the need for chemical cleaning agents. This reduces operating costs and meets sustainability standards, enhancing the market competitiveness of laser cleaning technology.
1.Straight Line
2.Vertical Line
3.Ellipse
4.Rotate Fill Circle
5.Straight Filled Rectangle
6.Line Filled Circle
The laser derusting machine is a high-tech product offering high efficiency, environmental protection, no pollution, and low energy consumption. Its versatility makes it suitable for various industries, including manufacturing, maintenance, moulding, cultural relic restoration, and the stone industry.

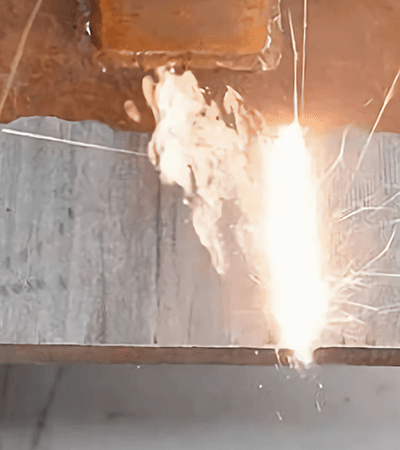

Laser cleaner machines are primarily used for cleaning metal surfaces in manufacturing, such as parts for cars, planes, and railways. They effectively remove rust, oxide layers, oil stains, and other contaminants without damaging the metal substrate, unlike traditional cleaning methods. This results in quick, efficient, and non-destructive cleaning of metal surfaces.
In the maintenance industry, laser cleaning machines are used for equipment, tools, and parts, including mechanical, aviation, and electronic equipment. Conventional cleaning methods can wear down equipment surfaces, but laser cleaning preserves the substrate, offering a safe, environmentally friendly, and efficient solution for removing corrosion, rust, and other contaminants.
In the mold industry, contaminants such as oil stains and welding slag often accumulate on mould surfaces, affecting their lifespan and performance. Laser derusting machines can clean these pollutants without causing surface wear or reducing mold accuracy, thus enhancing mould longevity and effectiveness.
Laser cleaners are instrumental in restoring ancient artefacts, including stone carvings, steles, pottery, and metalware. Traditional cleaning methods risk causing secondary damage to cultural relics, but laser cleaning allows precise control of energy and position, avoiding harm. Additionally, laser cleaning can reach intricate areas, such as small sculptures or complex three-dimensional structures.
In the stone industry, laser cleaning machines efficiently clean building materials like marble, granite, and concrete. They offer a faster cleaning process for large stone areas while avoiding environmental pollution from chemical cleaning agents. The laser cleaning machine can precisely control the depth and intensity of cleaning, preventing damage to stone surfaces.
