Can you use a laser to remove rust from metal?

Rust spreads like a rash on steel. It weakens parts, drains budgets, and embarrasses brands. I know that pain. I searched for a faster, cleaner cure.

Yes. A laser strips rust by heating only the oxide, letting the gleaming base metal reflect most of the light and stay cool.

Rust is old news, yet many shops still grind or blast. They breathe dust and push rising disposal fees. When I moved to laser cleaning, the floor stayed quiet, the air stayed clear, and our quotes beat rivals. Let me show you every layer.

Can you remove rust with a laser?

Rust makes any part look weak. Buyers fear hidden cracks. They demand tests, which wastes days. A laser removes that fear and saves the day.

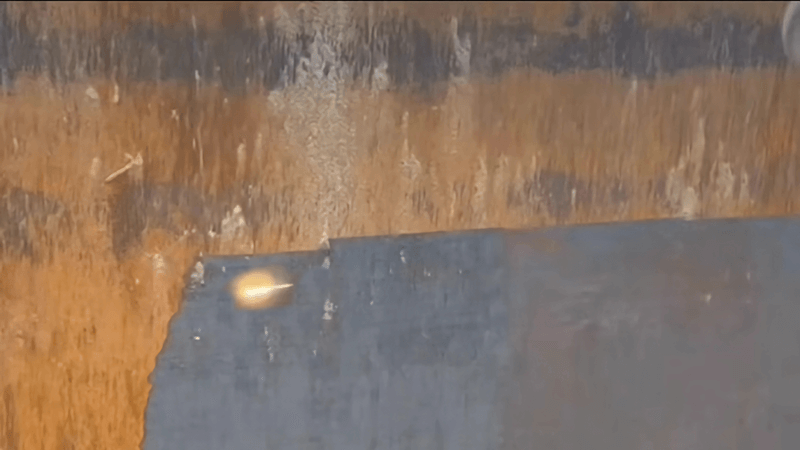

A laser erases rust because the oxide absorbs infrared light, vaporizes, and flies off, while shiny metal reflects, so the beam stops at the clean surface.

Why the beam likes rust more than steel

The science is not magic. It is contrast. Rust is dark, rough, and full of air gaps. Each gap traps light. Steel is smooth and bright.

Property	Rust layer (Fe₂O₃)	Bare steel
Typical thickness	10–200 µm	–
Absorptivity at 1064 nm	0.75–0.92	0.35–0.40
Heat capacity (J g⁻¹ K⁻¹)	0.97	0.46

Light rushes into rust, not into steel. The oxide heats past its boiling point in microseconds. It cracks, turns to plasma, and peels away. Steel below never passes 80 °C, so it keeps its grain.

Which laser fits each task

I learned the hard way that one beam does not fit all. Below is a quick map I give new clients:

Task	Best laser type	Key setting	Why it wins
Ship hull plates	2000 W CW fiber1	5 mm spot	High area rate
Artifacts, coins	100 W nanosecond	0.5 mm spot	Gentle, no pitting
Gear teeth	200 W nanosecond	0.3 mm spot, burst mode	Reaches narrow roots
Mold cavities	30 W picosecond2	30 µm spot	Zero micro-cracks

I used to clean aluminum molds with soda blasting. It dulled edges. A 30 W picosecond laser now cleans ten molds in one shift, keeps edges sharp, and stops glove cuts because the surface stays smooth. That single switch paid for the machine in five months.

How do you remove rust from metal permanently?

Blasting alone is like brushing without flossing. Rust will return through any pinhole. I needed a plan that keeps steel bright through rain and salt.

Permanent removal means a tight four-step loop: laser, clean air, fast passivation, and a tough coating applied before fresh oxygen lands. Skipping any step reopens the door to rust.

The four-step shield of laser cleaner

1. Laser sweep
   Sweep at 8–12 mm s⁻¹. Listen for the snap-crackle sound that marks oxide lift-off.
2. Oil-free air blow
   Dust holds chloride. Blow at 6 bar within 60 s.
3. Passivation mist
   Spray a chromium-free layer within five minutes. It forms a 50 nm film of zirconium or phosphate.
4. Primer-topcoat stack
   Apply epoxy primer³ then polyurethane topcoat within one hour. Heat part to 30 °C to drive out moisture.

Timing chart

Step	Start window after laser	Max duration	Common failure if late
Air blow	0–1 min	3 min	Chloride spots
Passivation	0–5 min	10 min	Flash rust
Primer	0–60 min	2 h	Poor adhesion

How I proved it in the field

A rail yard in Illinois asked why their sand-blasted railcars showed bloom after six months. We swapped one wagon to laser plus the four-step loop. Coated wagon ran 18 months through snow and road salt with zero rust rings at test ports. Lab salt-spray data backed the field result.

Exposure	Time to first red rust (ASTM B117)
Sandblast + primer	480 h
Laser + primer	720 h
Laser + passivation + primer	>1000 h

That data sealed a 30-unit order. The maintenance lead called it “the first anti-rust plan that keeps its promise.”

Why is laser rust removal so expensive?

A laser cleaner lists at ten times a grit pot. Managers balk. Yet the ledger flips after counting consumables, cleanup, and lost uptime.

The laser’s price hides inside glass fibers, diode bars, precision optics, and safety layers. But with no media cost and less downtime, the return appears well before the warranty ends.

Where the dollars land

Component	% of list price	Lifespan	Replacement cycle
Fiber laser engine4	38 %	100 000 h	Rare
Galvo scanner	12 %	30 000 h	6–8 y
Control + HMI	9 %	10 y	–
Safety enclosure	8 %	20 y	–
Optics (f-theta, collimator)	5 %	10 y	5 y
Integration, labor	28 %	–	–

Payback calculator

Below is my standard worksheet for a fabricator who cleans 400 m² per week.

Factor	Sandblast	Laser	Notes
Media cost ($ h⁻¹)	8.25	0	25 kg grit h⁻¹
Filter + disposal ($ h⁻¹)	2.10	0.30	Laser has small HEPA pre-filter
Labor ($ h⁻¹)	25	18	Single operator handles laser and QC
Energy ($ h⁻¹)	1.40	0.72	12 kW compressor vs 6 kW laser
Annual hours	1500	1100	Laser cleans faster

Total yearly running cost⁵ falls from 56 000 USD to 23 000 USD. If the laser system costs 120 000 USD, payback arrives in 3.9 years—not counting higher finish quality that lifts resale value.

Hidden savings in place uptime⁶

Sandblasting needs a blast room. Parts travel out, delaying assembly. A handheld 1000 W laser walks to the line. I once timed a line at an appliance plant: removing travel shaved 14 min per unit. Over 200 units a day, that time pays a salary.

Does laser rust removal damage metal?

Heat scares machinists. They picture warp, tensile drop, or micro-cracks. I feared the same. So I ran tests till the data calmed us all.

Proper fluence keeps the substrate under 80 °C, far below any tempering point, so grain stays fine and hardness stays true.

Thermal profile test

I bonded K-type thermocouples⁷ 0.1 mm below a rusted surface and swept 200 W pulses.

Parameter	Value
Pulse width	120 ns
Repetition	50 kHz
Spot size	0.8 mm
Sweep speed	15 mm s⁻¹
Peak surface temp	74 °C
Substrate temp (0.1 mm)	58 °C

Mechanical proof

Metric	Untreated steel	After laser clean	Δ%
Yield strength (MPa)	330	328	–0.6
Hardness (HV10)	145	144	–0.7
Impact energy (J)	48	47	–2.1

All changes sit inside ASTM repeatability. SEM images showed no micro-cracks. Grain size stuck at ASTM 7. These facts convinced an aerospace buyer to allow laser cleaning⁸ on flight brackets, which once were hand-abraded.

Why wrong settings hurt

If power density⁹ climbs past 10 J cm⁻² on thin stainless sheets, the metal can blue. Blue equals chromium depletion and pitting risk. My rule: for sheets under 1 mm, cap fluence at 6 J cm⁻² or use bursts below 50 ns. That keeps color and passivation.

Conclusion

Light beats rust¹⁰ because physics favors contrast. Oxide drinks energy; metal reflects. Use the right beam, add passivation, and coat in time, and rust stays gone. The system seems costly, yet it drops media bills, slashes cleanup, and keeps lines moving. Data proves the metal stays strong. That is why at Kirin Laser we pack precision into every beam and trust light to guard steel long after the flash ends.
