Cabinet-style Pulsed Laser Cleaning Machine

The Kirin pulsed laser stripper efficiently cleans surfaces across various industries. It removes paint, coatings, oxides, dirt, and contaminants, and is used in automotive, aerospace, ship maintenance, metal processing, construction, and heritage preservation. Its efficiency, chemical-free operation, and eco-friendliness make it a top choice.

Product Parameters

Laser Power

Single Mode 100W/ 200W/ 300W

Multi-Mode 300W/500W/750W/1000W

Max monopulse energy

1.5mj

5mj

5mj

12.5mj

12.5mj

Laser Wavelength

1080±10nm

Laser Working Mode

Pulsed

Pulse Width

10-500ns

Frequency Range

1-1000kHz

Fiber Cable Length

5m (10m customized)

Scanning Mode

8 patterns

Adjustable Scanning Range

10-130mm (F=160/210/254/300mm is optional)

Cooling Method

Air Cooling

Water cooling

Working Voltage

AC 110 -220V±10%, 50/60Hz

Controlling Power Range

0 – 100%

Power Consumption

<3KW

Working Temperature

0~45℃

Storage Temperature

-10~60℃

Operation Humidity

≤80%

Cleaning efficiency (/h)

15

Machine Dimension

970*500*800 mm

Net Weight

100kgs

Descriptions

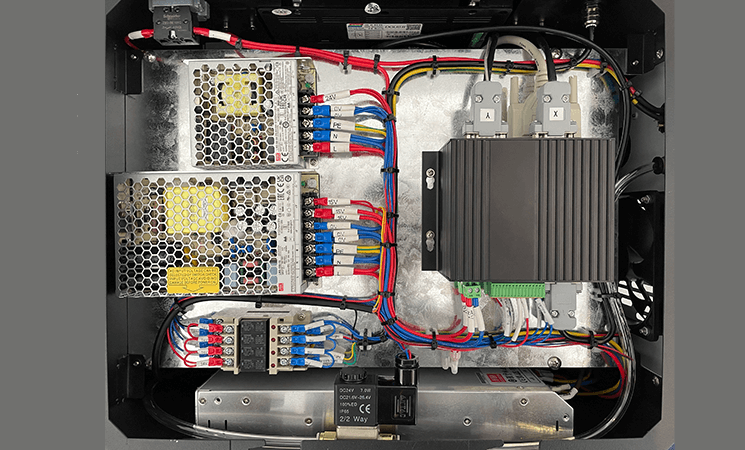

EU Standards Compliant Circuit Assembly

The clear circuit line panel in these machines adheres to IEC 61439-1&2 standards, ensuring the safety and reliability of low-voltage switchgear and control-gear assemblies. This compliance guarantees that the electrical equipment meets stringent safety requirements, providing reliable performance and safeguarding operators and equipment .

The machinery directive, particularly EN ISO 11553, specifies safety requirements for laser processing machines. This includes necessary protection measures and labeling to mitigate hazards. Compliance with these standards ensures the prevention of accidental radiation exposure, protecting users’ health .

These machines also comply with the Low Voltage Directive (LVD), ensuring safe operation within specified voltage limits. Adhering to EN 60825 standards further emphasizes safety, covering various laser products to ensure they are safe for use .

500W Pulsed laser cleaning machine

Cooling Types: Water Cooling And Air Cooling

Pulsed laser cleaning machines come in two cooling types: air-cooled and water-cooled. Typically, lasers up to 300W use air cooling. For higher power levels like 500W, 750W, and 1000W, water cooling is required.

Water cooling is crucial for high-power machines. It efficiently controls the laser’s temperature, ensuring stable performance during prolonged use. This system circulates water to absorb and dissipate heat, preventing overheating and extending the equipment’s lifespan.

Air cooling is suitable for lower-power machines, using airflow to dissipate heat. It is simpler and easier to maintain. While not as effective as water cooling, air cooling is lightweight and cost-effective, ideal for applications with lower power requirements and less continuous operation.

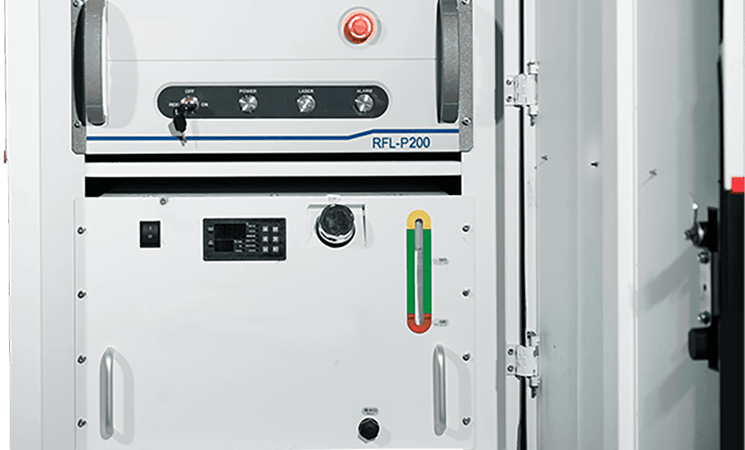

500w pulsed laser cleaning machine chiller

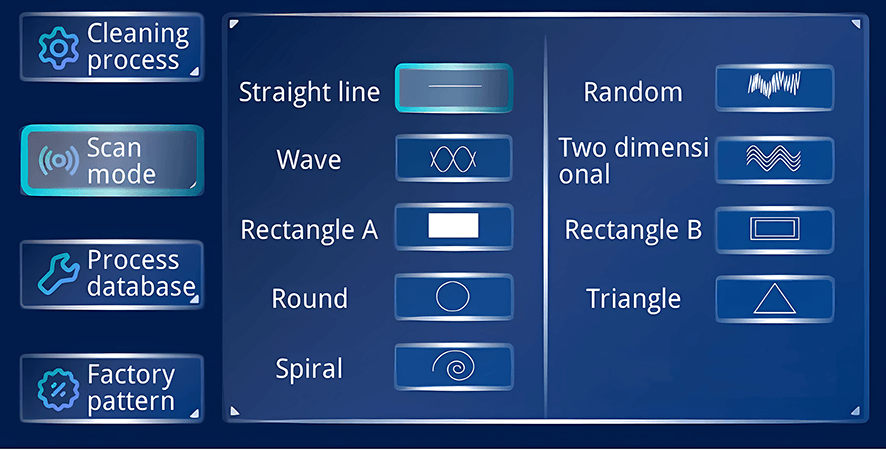

9 Cleaning Modes Suitable for your requirements

  1. Straight Line Mode
  2. Rectangular Mode 1
  3. Rectangular Mode 2
  4. Circular Mode
  5. Sinusoidal Mode
  6. Spiral Mode
  7. Free Mode
  8. Ring Mode
  9. Rotation Mode
9 cleaning modes pulsed

15 Supported Languages for pusled Laser Cleaning Machine

Chinese

English

Traditional Chinese

Russian

Japanese

中文

English

中文繁體

Pyccк

日本語

Spanish

German

Korean

French

Polish

Espanol

Deutsch

한국어

En français

Polski

Hungarian

Italian

Finnish

Swedish

Czech / Estonian

Magyar nyelv

Italiano

Suomi

Sverige

Čeština / Eesti

Pulsed Laser Cleaning Machine In Different Industries

The laser derusting machine is a high-tech product offering high efficiency, environmental protection, no pollution, and low energy consumption. Its versatility makes it suitable for various industries, including manufacturing, maintenance, moulding, cultural relic restoration, and the stone industry.

laser cleaning gear

Laser Cleaning In Manufacturing

Laser cleaner machines are primarily used for cleaning metal surfaces in manufacturing, such as parts for cars, planes, and railways. They effectively remove rust, oxide layers, oil stains, and other contaminants without damaging the metal substrate, unlike traditional cleaning methods. This results in quick, efficient, and non-destructive cleaning of metal surfaces.

laser cleaning in maintenance

Laser Cleaning In Maintenance Industry

In the maintenance industry, laser cleaning machines are used for equipment, tools, and parts, including mechanical, aviation, and electronic equipment. Conventional cleaning methods can wear down equipment surfaces, but laser cleaning preserves the substrate, offering a safe, environmentally friendly, and efficient solution for removing corrosion, rust, and other contaminants.

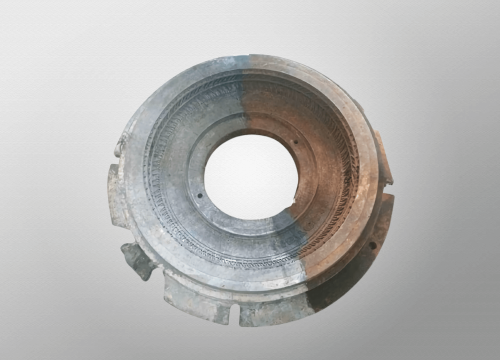

laser cleaning in mold industry

Laser Cleaning In Mold Industry

In the mold industry, contaminants such as oil stains and welding slag often accumulate on mould surfaces, affecting their lifespan and performance. Laser derusting machines can clean these pollutants without causing surface wear or reducing mold accuracy, thus enhancing mould longevity and effectiveness.

laser cleaning heritage

Laser Cleaning In Heritage Restoration

Laser cleaners are instrumental in restoring ancient artefacts, including stone carvings, steles, pottery, and metalware. Traditional cleaning methods risk causing secondary damage to cultural relics, but laser cleaning allows precise control of energy and position, avoiding harm. Additionally, laser cleaning can reach intricate areas, such as small sculptures or complex three-dimensional structures.

laser cleaning in stone industry

Laser Cleaning In Stone Industry

In the stone industry, laser cleaning machines efficiently clean building materials like marble, granite, and concrete. They offer a faster cleaning process for large stone areas while avoiding environmental pollution from chemical cleaning agents. The laser cleaning machine can precisely control the depth and intensity of cleaning, preventing damage to stone surfaces.

Featured Applications

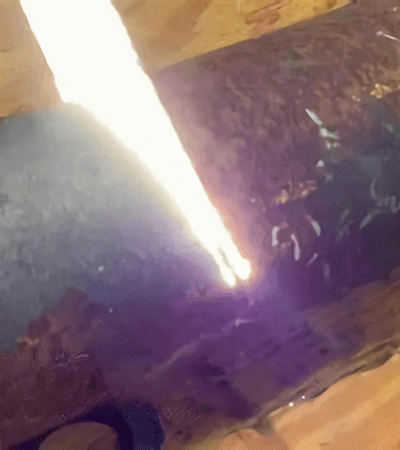

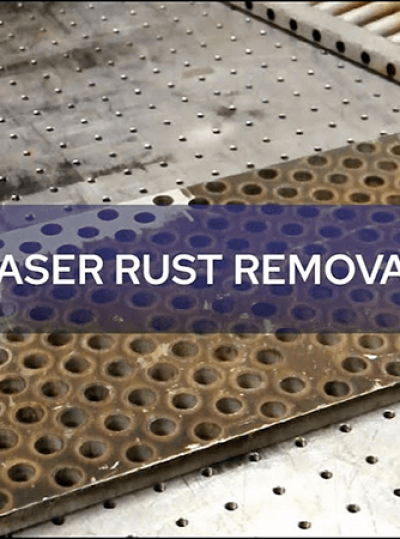

Laser Cleaning Sample rust

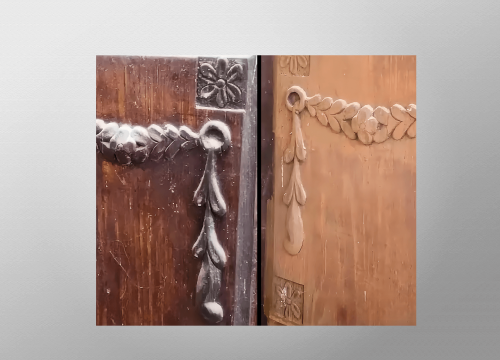

laser cleaning sample painting

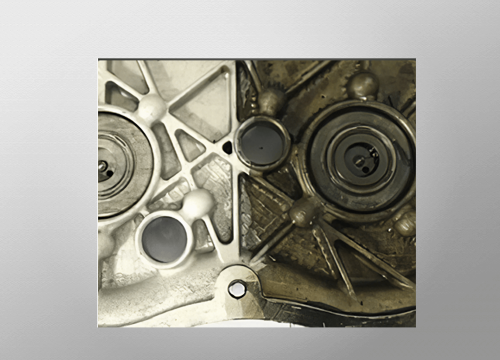

Laser cleaning sample engine
laser cleaning sample chair
