All-in-one Mopa Laser Marking Machine

Kirin Laser’s portable all-in-one color laser marking machine features a compact design, weighing just 35kg, making it easy to relocate and adapt to various work environments. This mobility ensures flexibility and convenience for different production setups.

Equipped with an adjustable MOPA laser, it offers fine control over pulse width and frequency, delivering exceptional marking precision on metal surfaces. This capability allows for high-quality, detailed marking suitable for a variety of applications, from branding to compliance labeling.

Descriptions

High-Precision Imported Galvanometer: Kirin Laser’s color laser marking machine integrates a top-grade imported galvanometer, ensuring superior marking accuracy, fast processing speeds, and excellent resistance to interference. This feature enhances efficiency in high-volume production environments, where precision and reliability are crucial.
Versatile JPT MOPA Laser Technology: Equipped with a JPT MOPA laser, this machine excels in producing vivid color markings on stainless steel and various other metal surfaces. This capability opens up a range of applications for creating logos, barcodes, QR codes, and decorative patterns, providing businesses with high flexibility in their marking needs.
Compact, Lightweight, and Energy Efficient: Designed with a small footprint and lightweight structure, Kirin Laser’s color laser marking machine is easy to integrate into any workspace. Its low-power consumption design not only reduces operational costs but also supports sustainability by being energy-efficient and environmentally friendly.
Advanced Air-Cooling System: The machine features an efficient air-cooling system that rapidly dissipates heat, effectively maintaining the optimal temperature of the laser marking components. This ensures the equipment runs consistently and reliably over long periods, minimizing downtime and extending its service life.
High Durability and Low Maintenance: Built with high-quality materials and components, the machine is engineered for durability and low maintenance. The reliable air-cooled system and robust galvanometer reduce wear and tear, further ensuring long-term stable operation and reducing the total cost of ownership.
Enhanced Software Integration: Kirin Laser’s color laser marking machine supports advanced software integration, allowing for seamless customization of marking parameters. This user-friendly interface enhances productivity by enabling operators to quickly set up and adjust marking processes according to specific project requirements.

Parameters

Model	KR-MOPA20	KR-MOPA30	KR-MOPA60	KR-MOPA100
Net weight	35kg	35kg	35kg	35kg
Machine size	350600830mm	350600830mm	350600830mm	350600830mm
Laser Parameters
Power	20W	30W	60W	100W
Laser source	JPT/GZTECH	JPT/GZTECH	JPT/GZTECH	JPT/GZTECH
Marking area	110-300mm	110-300mm	110-300mm	110-300mm
Beam quality	＜1.4m²	＜1.4m²	＜1.5m²	＜1.6m²
Average output power	＞20W	＞30W	＞60W	＞100W
Power consumption	＜110W	＜150W	＜330W	＜440W
Central wavelength	1064nm	1064nm	1064nm	1064nm
Supply DC voltage (VDC)	24V	24V	24V	24V
Beam diameter	7±0.5mm	7±0.5mm	7±0.5mm	7±0.5mm
Cooling method	Air cooled	Air cooled	Air cooled	Air cooled

Size

More Details

Color Laser Marking Scanner

Kirin Laser’s MOPA color laser marking machine features high-transparency lenses designed to minimize laser loss and enhance optical performance. The lens housing is crafted with precision CNC machining, ensuring high processing accuracy and reliability for intricate marking tasks.

Our carefully engineered lens system prioritizes efficiency and stability, providing precise control over laser energy and marking parameters. This advanced design ensures consistent, high-quality marking results, even during prolonged operation, making it ideal for demanding industrial applications.

Manual Lifting Column

Kirin Laser’s manual lifting column is designed for simplicity and ease of use, allowing users to adjust the height by simply rotating or pulling the handle. This user-friendly design eliminates the need for electric drives, thereby reducing the risk of potential failures associated with complex electric systems.

Compared to electric lifting mechanisms, manual lifting columns offer significant advantages, such as lower manufacturing and maintenance costs. They are also more environmentally friendly and energy-efficient, providing a reliable and cost-effective solution for various marking and engraving applications.

Aluminum Material Workbench

Kirin Laser’s workbench is made from high-quality aluminum material, which offers excellent vibration resistance to minimize any movement during the laser marking process. This stability is crucial for maintaining precise and accurate marking results, even under high-speed operations.

The aluminum material also boasts high durability and superior wear resistance, ensuring a long-lasting performance. Its smooth surface prevents the accumulation of dust and debris, making it easy to clean and maintain, thus ensuring a consistently clean working environment for optimal laser performance.

What Applications of Kirin Laser's MOPA Fiber Laser Markers?

Our 50W and 60W MOPA fiber laser markers are incredibly versatile, designed to handle a range of marking applications. Beyond marking on metal, these powerful machines excel in specialized tasks like creating black markings on aluminum and adding vibrant colors to stainless steel—outperforming the 30W versions in these specific applications. For more details on the diverse capabilities of our laser markers, see the reference below.

Deep Metal Engraving: Thanks to their enhanced power, Kirin Laser’s 50W and 60W MOPA fiber laser markers are ideal for deep engraving on metals. This makes them perfect for industries like tooling or automotive manufacturing, where durable, long-lasting marks are essential.
Ceramic Marking: While fiber lasers are typically known for metal marking, the 50W and 60W models from Kirin Laser can also mark ceramics effectively, making them suitable for applications in home decor, kitchenware, and more.
High-Speed Line Marking: For sectors that require speed and efficiency, such as packaging or high-volume manufacturing lines, the 60W laser marker provides rapid line marking capabilities without sacrificing quality.

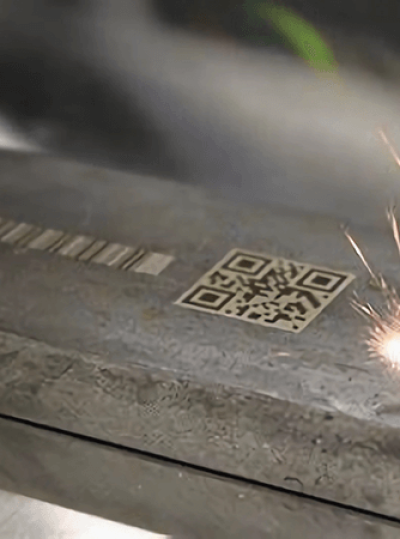

PCB Board Marking: Our laser markers offer an efficient alternative to traditional stickers and printing methods by engraving precise barcodes and 2D codes on delicate epoxy resin surfaces of PCB boards, ensuring clean and scannable results.
Chip and IC Marking: Kirin Laser’s technology allows for the precise engraving of 2×2 mm 2D codes on electronic chips without harming the substrate, and clear, efficient font markings on IC chips, replacing outdated printing techniques.
Crystal Engraving: Perfectly optimized for single-line engraving on crystal materials, our MOPA laser markers deliver consistently uniform lines and high precision, ideal for digital text and decorative engravings.

How to Mark Color Patterns on Stainless Steel Using Kirin Laser's 60W MOPA Laser Marking Machine？

Kirin Laser’s 60W MOPA laser marking machine is a versatile device capable of creating vibrant and permanent color patterns on stainless steel surfaces. By adjusting the pulse width and frequency, the MOPA laser allows precise control over the laser’s energy and exposure time, enabling a wide range of color effects on stainless steel. Below are the detailed steps to mark color patterns on stainless steel using Kirin Laser’s 60W MOPA laser marking machine:

Step-by-Step Guide:

Prepare the Stainless Steel Surface:
- Ensure the stainless steel surface is clean, free of dust, oil, and any contaminants that could affect marking quality. Use a mild solvent or cleaning solution with a soft cloth to thoroughly clean the surface.
Set Up the Kirin Laser 60W MOPA Laser Marking Machine:
- Securely place the stainless steel workpiece on the laser marking machine’s worktable, ensuring it is properly aligned and stable to avoid any movement during the marking process.
Adjust Laser Parameters:
- Configure the laser parameters such as pulse frequency, pulse width, power, and speed. For color marking, pulse frequency usually ranges from 20-200 kHz, and pulse width can be adjusted to achieve different color effects. Lower frequencies with higher pulse widths generally produce colors like blue and red, while higher frequencies with lower pulse widths create colors like yellow and green.
Select the Design or Pattern:
- Use laser marking software compatible with the Kirin Laser MOPA laser machine to design or import the desired color pattern or graphic. Ensure that the design is correctly scaled and positioned for your workpiece.
Perform a Test Marking:
- Before proceeding with the full marking, conduct a test on a scrap piece or an inconspicuous area to verify the color output and pattern accuracy. Adjust the laser parameters based on the test results if necessary.
Start the Color Marking Process:
- After setting and testing the parameters, initiate the marking process. The Kirin Laser 60W MOPA laser creates various colors on stainless steel by generating different oxide layers under controlled temperatures. The final result depends on the precise control of the laser settings.
Inspect the Marked Pattern:
- Once the marking process is complete, inspect the stainless steel workpiece to ensure the color pattern meets the desired quality and specifications. If adjustments are needed, fine-tune the laser settings and repeat the process.
Post-Marking Treatment:
- Clean the marked area to remove any debris or residue from the marking process. Use a soft cloth and a mild cleaner to gently wipe the surface without affecting the color marking.

Additional Tips:

Control of Laser Parameters: Achieving successful color marking relies on the precise control of laser parameters like pulse frequency, pulse width, and marking speed.
Material Quality: Different grades of stainless steel may react differently to laser marking, so it is crucial to perform tests on each type.
Ventilation and Safety: Ensure proper ventilation during the marking process to avoid inhaling any fumes. Always wear safety glasses and adhere to laser safety guidelines.

By following these steps, you can achieve vibrant and durable color patterns on stainless steel using Kirin Laser’s 60W MOPA laser marking machine. This capability allows for various applications in product customization, branding, and decorative purposes.

Feel free to ask if you need more information or specific details on any step!

Why Choose Kirin Laser's 100W MOPA Fiber Laser Marking Machine?

Kirin Laser’s 100W MOPA fiber laser marking machines, equipped with the latest JPT MOPA technology, are a powerful solution for businesses seeking to elevate their marking efficiency and versatility. Here’s what makes the 100W model stand out:

Superior Marking Efficiency: The Kirin Laser 100W MOPA fiber laser marking machine significantly outperforms lower-wattage models like the 60W, especially when marking difficult materials. It excels in tasks such as creating intense black marks on aluminum and producing vivid, multi-color effects on stainless steel.
Expanded Material Compatibility: With its robust 100W power, the Kirin Laser machine can handle an even broader array of materials. From various metals to durable composites that are challenging for conventional marking machines, this model ensures precise and high-quality results across different substrates.
Faster and Deeper Engraving: The 100W model provides rapid and deep engraving capabilities, making it highly efficient for high-volume production needs. Its enhanced power output ensures that detailed, high-contrast markings are achieved quickly without compromising quality.
Enhanced Durability and Stability: Kirin Laser’s 100W MOPA laser marker is designed for long-term reliability. With the ability to operate efficiently without always running at maximum power, the machine experiences less wear and tear. Many 100W models also come with advanced features like fiber laser window isolators, which further boost the machine’s stability and durability over extended use.

With these advantages, investing in Kirin Laser’s 100W MOPA fiber laser marking machine offers unparalleled speed, flexibility, and lasting performance. It is an ideal choice for businesses with diverse and demanding marking requirements.

Send A Enquiry

Frequently Asked Questions

Is it user-friendly for beginners?

Yes, the Kirin Laser 60W MOPA Laser Marking Machine is designed to be user-friendly, making it accessible for beginners. However, to ensure optimal results, it is highly recommended to thoroughly read the user manual or undergo proper training before operating the machine for the first time.

What makes the 60W version stand out from standard markers?

The 60W MOPA laser marking machine from Kirin Laser stands out due to its advanced power performance and versatility, providing excellent value for money. It not only delivers high precision in marking but also supports a wide range of marking styles and effects, catering to diverse industrial needs.

When will my 60W MOPA laser marker be ready for dispatch after I have placed my order?

Typically, once your order for the 60W MOPA laser marker is confirmed, Kirin Laser ensures dispatch within three days, allowing for swift delivery and minimal downtime in your operations.

Is there a warranty or support service?

Kirin Laser's 60W MOPA laser marking machines come with a one-year warranty. In addition, comprehensive support services, such as troubleshooting and technical guidance, are available to assist with any issues. For detailed information regarding the warranty and service terms, please consult our professional team.

How can I maintain the 60W MOPA laser marker for long-term use?

Regular maintenance is crucial to ensure the long-term reliability of the 60W MOPA laser marker. This includes cleaning the lens, checking the cooling system, ensuring proper alignment, and following the manufacturer's guidelines for preventive care.

Can the 60W MOPA laser mark different colors on stainless steel?

Yes, the 60W MOPA laser can produce various colors on stainless steel by adjusting the laser's pulse duration and frequency. This capability allows for highly customized and aesthetic markings, ideal for branding and decorative purposes.

What materials can the MOPA laser marking machine process?

The MOPA laser marking machine is compatible with a broad range of materials, including metals (such as stainless steel, aluminum, and titanium), plastics, ceramics, and some composites. This versatility makes it suitable for multiple industries, from automotive to electronics and jewelry.

How deep can the 60W MOPA laser engrave?

The engraving depth depends on the material and the specific laser settings used. Generally, the 60W MOPA laser can achieve deep engravings on metals, which are ideal for applications that require durable and permanent markings.

How is the cooling system in the 60W MOPA laser marker?

Kirin Laser's 60W MOPA laser marking machines are typically equipped with efficient air-cooling systems that help maintain optimal operating temperatures. This cooling mechanism ensures stable performance during prolonged use and extends the machine's lifespan.

Is software provided with the MOPA laser marking machine?

Yes, Kirin Laser provides user-friendly software with the MOPA laser marking machine. The software allows for easy design creation, parameter adjustments, and integration with different file formats, ensuring smooth and precise laser marking operations.
