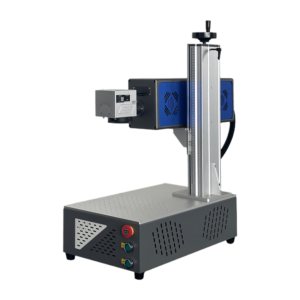

Kirin Laser’s CO2 laser marking machine is crafted with a compact, integrated design that maximizes space efficiency and offers excellent portability. This sleek design ensures that your workspace remains organized and easy to navigate, making it ideal for facilities where space optimization is key.
Equipped with advanced machine tool lighting, our CO2 laser marker enhances marking precision while also significantly boosting operational safety. This upgrade is vital for improving production efficiency and maintaining high-quality standards. With Kirin Laser’s CO2 laser marking machine, you can expect consistent and reliable results, allowing you to elevate your production capabilities to new heights.
Model | KR-AC30 | KR-AC40 | KR-AC60 |
Power | 30W | 40W | 60W |
Marking area | 110-110mm | 110-110mm | 110-110mm |
Laser source | Davi | Davi | Davi |
Galvanometer | RC1001 | RC1001 | RC1001 |
Wavelength | 10.6μm | 10.6μm | 10.6μm |
Rated output power | ≥35W | ≥40W | ≥60W |
Power stability | ＜±8% | ＜±6% | ＜±6% |
Beam quality | / | M²<1.3 | M²<1.2 |
Beam diameter | / | 1.8±0.2mm | 1.8±0.2mm |
Working frequency | 0-25KHZ | 0-25KHZ | 0-25KHZ |
Input voltage | 48VDC±2% | 48VDC±2% | 48VDC±2% |
Maximum average current | 12.5A | 12.5A | 25A |
Thermal load | ＜600W | ＜600W | ＜1200W |
Cooling system | Air cooling | Air cooling | Air cooling |
Kirin Laser’s CO2 laser marking machines come equipped with precision-engineered machine tool lights that deliver optimal illumination. This ensures clear visibility of the marking area and workpiece, significantly reducing errors that can occur due to insufficient lighting. The result is a streamlined workflow that boosts overall work efficiency.
Integrating machine tool lights into the CO2 laser marker not only enhances the machine’s operational effectiveness but also elevates its professional appeal. The improved visibility creates a more intuitive operating experience, optimizing production efficiency and reinforcing a modern and reliable image for your laser marking operations.
Kirin Laser’s CO2 laser marking machines feature the RC1001 galvanometer, renowned for its high-performance scanning motor and cutting-edge photoelectric sensing technology. This combination ensures outstanding stability, exceptional positioning accuracy, and robust anti-interference capabilities, enabling rapid and precise marking results.
The compact design of our CO2 laser marker’s galvanometer is complemented by a driver equipped with advanced position and speed detection functions. This significantly enhances the dynamic response performance and maximizes the scanning speed of the entire system, making it a top choice for high-efficiency marking applications.
Kirin Laser’s CO2 laser marking machines are equipped with the advanced Wuhan Hansel ammeter, known for its rapid response capabilities. This allows for high-frequency scanning operations to be completed in minimal time, significantly boosting overall work efficiency and making it ideal for high-speed processing applications.
The Wuhan Hansel ammeter is constructed with premium-quality materials and components, ensuring exceptional durability and an extended service life. This robust design minimizes the need for frequent maintenance and replacement, effectively reducing the operational costs of using our CO2 laser marker.
Kirin Laser’s CO2 laser marking machines are built to make your marking jobs easy and efficient. These machines use advanced CO2 laser technology, which works great on a wide range of materials like wood, leather, glass, plastics, and even fabrics. This means you can use them for almost anything—from engraving logos on products to making detailed designs on various surfaces.
What makes Kirin Laser’s CO2 machines stand out? First, they are reliable and precise. With their high-quality laser beams, you get clear, sharp marks every time. This is perfect for businesses that need consistent results, whether for branding or product identification. They also come with adjustable settings, so you can control the depth and clarity of each mark to fit different needs.
Another big plus is their speed. These machines are designed to work fast without losing quality. This can help you save time and increase your output, which is great if you’re looking to boost your production efficiency. And because they use non-contact marking, there’s no wear and tear on the materials or the machine itself, meaning lower maintenance costs in the long run.
Kirin Laser machines are also user-friendly. You don’t need to be a tech expert to operate them. They come with easy-to-understand software that lets you set up and run your marking tasks quickly. Plus, Kirin Laser offers strong customer support to help you if you ever run into issues.
Overall, Kirin Laser’s CO2 laser marking machines bring you precision, speed, and flexibility. They are a smart investment for any business that wants to deliver high-quality products with clear, professional marks. Whether you are in manufacturing, arts and crafts, or branding, these machines help you get the job done right every time.
Kirin Laser’s CO2 laser marking machines utilize advanced CO2 lasers, which are a type of molecular gas laser system. These lasers operate based on a specially formulated gas mixture composed of carbon dioxide (CO2), helium (He), nitrogen (N2), hydrogen (H2), water vapor, and xenon (Xe). The laser generation process begins with gas discharge, powered either by direct current (DC) or alternating current (AC) electricity, or through the use of Radio Frequency (RF) excitation. The energy from this discharge brings nitrogen molecules to a metastable vibrational state. These energized nitrogen molecules then collide with CO2 molecules, transferring their energy to them, which ultimately results in laser emission.
The emitted infrared laser light from Kirin Laser’s CO2 marking machines typically has wavelengths of 9.6 and 10.6 µm. When this focused laser beam is directed from the laser tube to the surface of the target material, it rapidly evaporates the material’s surface layer, exposing deeper layers beneath. This process effectively creates a precise and permanent mark on a variety of materials, ranging from organic materials like wood and leather to synthetic materials like plastics.
The inclusion of helium in the gas mixture is crucial as it aids in efficient heat dissipation, ensuring the CO2 molecules can promptly return to their ground state. Meanwhile, hydrogen and water vapor serve an essential function by re-oxidizing carbon monoxide formed during the discharge back into carbon dioxide, maintaining the efficiency and longevity of the laser operation. This controlled and precise process is slightly different from laser cutting, which requires a higher power output for material separation rather than surface marking.
Kirin Laser CO2 laser marking machines are highly versatile and built to handle the demands of different industries, thanks to their durability and compatibility with various materials. Here’s why Kirin Laser’s CO2 laser markers stand out:
1. Long-Lasting Laser Source
Our CO2 laser source is designed to last over 20,000 hours of service, utilizing high-quality RF metal tubes that ensure stable and efficient operation.
2. Durable and Robust Design
The CO2 laser markers from Kirin Laser feature a strong and durable cabinet design, making them ideal for tough industrial environments where reliability is a must.
3. Customizable to Meet Your Needs
We offer customizable designs to cater to specific marking needs, ensuring each machine fits perfectly with your operational requirements.
4. Optional Smoke Purifiers for a Cleaner Workspace
To manage smoke and dust generated during marking, we provide optional smoke purifiers, helping maintain a cleaner and safer work environment.
5. Advanced Software for Superior Results
Our software is highly advanced and optimized to deliver the finest marking results, making it one of the best in the industry.
6. Cost-Effective Without Compromising Quality
Kirin Laser’s CO2 laser markers are competitively priced, offering a more affordable option compared to many low-performance Chinese CO2 laser machines while still providing high-quality marks, consistent operation, and excellent productivity.
7. Ideal for Organic Material Marking
They are particularly effective for marking organic materials such as wood, select plastics, and ceramics, providing crisp and clear engravings.
8. Designed for Continuous Operation
Our laser modules are built to handle continuous 24-hour operations and offer a lifespan exceeding 20,000 hours, making them a highly profitable investment for any business.
9. Maintenance-Free Air-Cooled System
Unlike many other models that use water cooling systems, Kirin Laser machines utilize an air-cooled system. This requires no maintenance and eliminates the need for consumables, reducing operational costs.
10. Capable of High-Contrast Metal Marking
Additionally, our CO2 laser machines are capable of marking painted metals, thanks to their high contrast capabilities, fast engraving speeds, and low power consumption.
11. Top-Tier Technology for Maximum Efficiency
With cutting-edge technology in our software, Kirin Laser’s engraving machines are among the top choices for industries seeking efficiency, reliability, and top-notch performance.
Kirin Laser's all-in-one CO2 laser marking machines come with a robust 3-layer packaging to ensure safe delivery. The outer layer is a sturdy plywood case, providing solid protection. The middle layer includes foam padding to absorb shocks and prevent any shaking during transport. The innermost layer is a thick plastic bag that keeps the machine waterproof. Every possible risk of damage has been considered to guarantee safety, and our experienced shipping partners handle the transportation with care. You can contact us to request a sample picture of the packaging.
Typically, the production time for our machines is 5 working days. Once ready, the machine is shipped via air express services like FedEx or TNT, which usually takes an additional 4 to 6 working days to reach your location. For more details, you can check out our customer testimonials to hear from those who have already experienced our service.
Kirin Laser's engineers fully install and test each machine before shipping it out. For any small parts that need installation after delivery, and for guidance on how to operate the machine, we provide a free, detailed training video and a comprehensive user manual. Most of our customers find these resources sufficient to learn and operate the machine by themselves.
We offer comprehensive post-purchase support for both machine usage and software guidance. Our team provides online support in English through multiple channels such as Skype, WhatsApp, WeChat, Email, and Video. For more in-depth support, we can offer remote assistance via TeamViewer software. If there is a hardware issue, our experts will help identify the problem, and we’ll send you replacement parts if necessary.
Kirin Laser's all-in-one CO2 laser marking machines are highly versatile and compatible with a range of materials, including wood, leather, glass, plastics, rubber, paper, and certain ceramics. This makes them ideal for various industries, from arts and crafts to manufacturing.
Our CO2 laser marking machines come equipped with high-quality laser tubes that offer a long lifespan of over 20,000 hours. This makes them a reliable and long-term investment for your business, providing consistent performance for years.
Yes, Kirin Laser’s all-in-one CO2 laser marking machines are designed for continuous 24-hour operation. Their robust build and efficient cooling systems ensure stable performance, even under heavy workloads.
Our CO2 laser machines are low-maintenance. The air-cooled system eliminates the need for water cooling, reducing maintenance requirements and the need for consumables. Regular cleaning and occasional part checks are generally all that is needed to keep the machine running smoothly.
The all-in-one CO2 laser marking machines from Kirin Laser come with user-friendly software that is easy to set up and operate. The software is designed to provide high precision and accuracy, suitable for both beginners and professionals.
Yes, Kirin Laser offers a comprehensive warranty for all our machines. The warranty covers both the laser source and other critical components. In case of any issues, our dedicated support team is ready to assist you, ensuring peace of mind and reliable operation.
