This 4-in-1 S&A handheld laser machine combines welding, cleaning, cutting, and welding seam cleaning functions into one efficient system. Equipped with an integrated S&A chiller housed within the cabinet, the machine’s compact design significantly reduces its size, making it more space-saving and practical.
Its lightweight handheld design ensures easy operation across various work environments, especially for intricate shapes and hard-to-reach areas. Offering dependable performance and high precision, this versatile machine is the best cost-effective solution in its category, delivering reliable results without compromising quality.
Kirin Laser’s 4-in-1 Laser Welding Machines
Kirin Laser’s 4-in-1 laser welding machines combine the functions of laser welding, laser cleaning, laser cutting, and weld seam cleaning into a single, powerful unit. This multi-functional design adapts to a variety of work environments, helping users save both space and costs while easily switching between functions, thereby enhancing overall productivity and efficiency.
Laser Welding Function:
Kirin Laser’s 4-in-1 laser welding machines use a high-power laser beam to produce firm, smooth, and aesthetically pleasing welds with high speed and precision.
These machines support a wide range of metals, such as stainless steel, carbon steel, and aluminum alloys, which improves production output and quality across various industries.
Laser Cutting Function:
The 4-in-1 laser welding machines can also handle precise cutting of thin metal materials, efficiently cutting metal sheets within the 2-3mm thickness range.

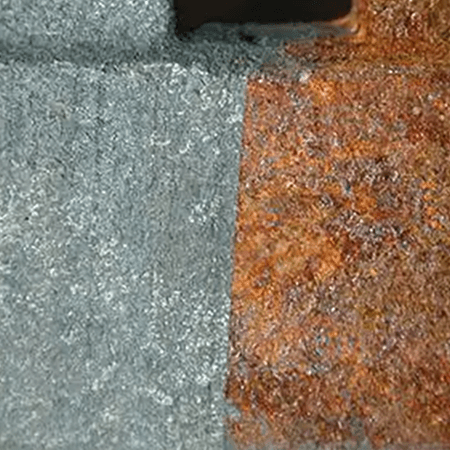

Laser Cleaning Function:
In addition to welding and cutting, Kirin Laser’s 4-in-1 machines are equipped with a laser cleaning function. This function is perfect for pre-welding surface cleaning, removing contaminants to prepare the surface for welding and ensuring optimal welding results.
Equipped with reliable Raucus laser sources, the machines efficiently eliminate rust, oil, paint, and coatings from metal surfaces without causing any damage, ensuring a clean and solid weld.
Weld Seam Cleaning Function:
The 4-in-1 machines also feature a weld seam cleaning function, which is specially designed to clean weld seams post-welding. This ensures that any residue or discoloration from the welding process is removed, leaving the surface clean and smooth, enhancing the overall quality and appearance of the final product.
MODEL | KR-LW1500S | KR-LW2000S | KR-LW3000S |
Laser source | Raycus/Reci/BWT/Max | Raycus/Reci/BWT/Max | Raycus/Reci/BWT/Max |
Laser power | 1500W | 2000W | 3000W |
Power Adjustment Range | 0-1500W | 0-2000W | 0-3000W |
Operational Voltage | 220V Single Phase | 220V Single Phase | 380V Three Phase |
Laser wavelength | 1080nm | 1080nm | 1080nm |
Fiber length | 10M/12M/15M/Maximum20M | 10M/12M/15M/Maximum20M | 10M/12M/15M/Maximum20M |
Operating Mode | Continuous Welding | Continuous Welding | Continuous Welding |
Maximum Oscillation Speed | 20000mm/s | 20000mm/s | 20000mm/s |
Operating System | Handheld Welding System | Handheld Welding System | Handheld Welding System |
Cooling System | S&A Water-cooled | S&A Water-cooled | S&A Water-cooled |
Working environment temperature range | 10-40℃ | 10-40℃ | 10-40℃ |
Humidity range Operating environment | < 70% non-condensing | < 70% non-condensing | < 70% non-condensing |
Welding gap requirements | ≤0.5mm | ≤0.5mm | ≤0.5mm |
Laser welding machine dimensions | 860*410*700mm | 860*410*700mm | 1140*530*1040mm |
Single wire feeder dimensions | 570*250*400mm | 570*250*400mm | 570*250*400mm |
Welder Machine Weight | 77kg | 77kg | 77kg |
Laser Welding Gun Weight | 0.75kg | 0.75kg | 109.2kg |
Kirin Laser’s 4-in-1 laser welding machines feature a handheld design, offering flexibility, portability, and precise control. This makes them ideal for a wide range of applications, including welding intricate shapes and performing on-site welding tasks. The compact size ensures it can be easily transported and used in confined spaces.
The ergonomic handheld design ensures ease of use, allowing operators to maneuver the machine effortlessly for complex welding projects. It maintains accuracy and efficiency even in demanding environments, reducing operator fatigue while delivering consistent results.
S&A chillers, like the CWFL series, offer precise cooling with dual temperature control, keeping laser welding machines stable with a temperature fluctuation of just ±0.5°C. Their dual cooling circuit design saves space while ensuring efficient performance for both laser and optics.
These chillers also feature integrated safety alarms for abnormal flow and temperature issues, providing reliable protection. The high-quality, corrosion-resistant components and closed water tank system reduce maintenance and extend the equipment’s lifespan.
Kirin Laser’s laser wire feeding system ensures high precision during dynamic welding processes, offering accurate wire positioning with minimal deviation. The system is available in both single-wire and dual-wire feeding configurations, allowing flexibility based on specific welding tasks.
The single-wire feeding option is ideal for standard welding applications, while the dual-wire feeding supports simultaneous feeding of two wires for greater efficiency in welding thicker materials. This system integrates seamlessly with Kirin Laser’s equipment, ensuring optimal performance in various industrial environments.
1. Superior Cooling Performance for Continuous Operation
Kirin Laser’s water-cooled laser welding machines ensure optimal cooling during extended welding sessions. This means U can run your machine longer without overheating, resulting in higher productivity and minimal downtime.
2. Enhanced Welding Precision
Thanks to efficient cooling, these machines maintain a stable laser output, providing U with precision in every weld. U can expect clean, strong welds, even in high-volume production, boosting the overall quality of your products.
3. Versatility Across Metal Types
Kirin’s water-cooled welding machines work seamlessly across various metals like stainless steel, aluminum, copper, and more. U can handle diverse welding tasks, giving U the flexibility to meet different project requirements.
4. Reduced Maintenance and Longer Lifespan
The water-cooling system reduces wear and tear on machine components, translating to less frequent maintenance and extended machine life. This means fewer interruptions and lower long-term operating costs for your business.
5. Higher Power for More Demanding Jobs
With higher power options, Kirin’s water-cooled laser welding machines can tackle even the most challenging welding jobs. U can take on more complex projects that require stronger and faster welds, enhancing your business’s capabilities.
6. Competitive Edge in Production Efficiency
By integrating water-cooled technology, U get a laser welding solution that boosts efficiency without compromising quality. This gives U an edge in fulfilling large orders while maintaining top-notch results, ensuring client satisfaction.
1. Efficient Heat Management
Kirin’s water-cooled system ensures optimal heat dissipation during continuous welding, allowing You to work longer without interruptions. This reduces the risk of overheating and damage, ensuring stable performance in demanding environments.
2. High Flexibility for Complex Welding Tasks
With the hand-held design, You can weld in tight spaces or hard-to-reach areas with ease. It provides You the flexibility to handle different shapes and sizes of metal workpieces, giving You more versatility in your projects.
3. Precision Welding with Minimal Distortion
The stable laser output from the water-cooled system delivers precise, clean welds with minimal thermal distortion. You get better control over the welding process, which is crucial for high-quality finishes, especially in delicate or intricate applications.
4. Suitable for a Variety of Materials
Kirin’s hand-held water-cooled welding machines can efficiently weld materials like stainless steel, aluminum, and copper. This makes them an excellent choice for a range of industries, giving You the ability to handle various welding tasks with one machine.
5. User-Friendly Operation
These machines are designed for ease of use, allowing both skilled welders and new operators to achieve high-quality results. The intuitive interface and lightweight hand-held design make it convenient to use, reducing operator fatigue during long welding sessions.
6. Consistent High Power for Stronger Welds
The water-cooled system supports high-power output, enabling You to create deep, strong welds. Whether You are working on thick or thin materials, the machine delivers consistent power, ensuring reliable and durable welds every time.
7. Low Maintenance, High Durability
The advanced cooling system reduces wear on internal components, lowering the need for frequent maintenance. You can count on longer machine life, reduced downtime, and overall lower operational costs, giving You more value for your investment.
8. Increased Productivity
With the combination of portability, power, and cooling efficiency, Kirin’s hand-held laser welding machines allow You to complete jobs faster without compromising on quality. This boosts your production rate and helps You meet deadlines efficiently.
S&A chillers ensure stable temperature control, which is critical for the reliable performance of laser welding machines. They prevent overheating by maintaining a consistent operating temperature.
Deionized or distilled water is recommended, as these fluids prevent mineral buildup that can corrode the system and clog pipes.
Generally, it is advisable to replace the water every three months, but in harsher environments, more frequent replacements may be necessary to maintain performance.
S&A chillers come equipped with alarms for flow rate issues, overheating, and compressor problems, providing protection for both the chiller and the laser welding machine.
In cold climates, you can either add antifreeze to the system or use a built-in heater to prevent the water from freezing.
The ideal water temperature for most laser welding applications is between 20°C and 25°C. Adjusting the temperature based on working conditions ensures optimal performance.
The dual cooling circuit design cools both the fiber laser and the optics simultaneously, which ensures efficient performance during continuous use.
Models like the CWFL-2000ANW12 are lightweight, equipped with caster wheels, and designed for easy mobility, making them highly portable for various welding applications.
The temperature stability for S&A chillers is typically within ±0.1°C to ±1°C, depending on the model, ensuring precise control over the welding process.
Regular maintenance includes cleaning filters, ensuring proper water levels, and checking the condition of the circulating water. Ensuring that all components are functioning properly helps extend the life of the system.
